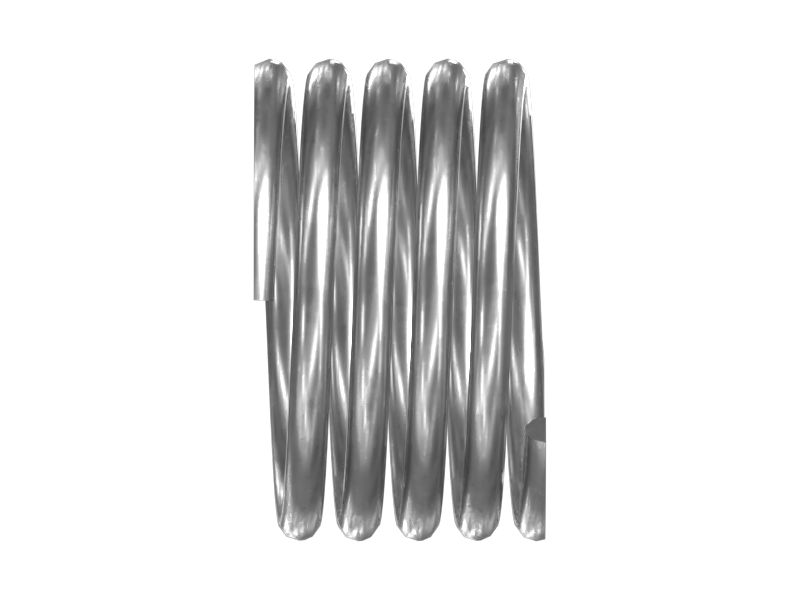

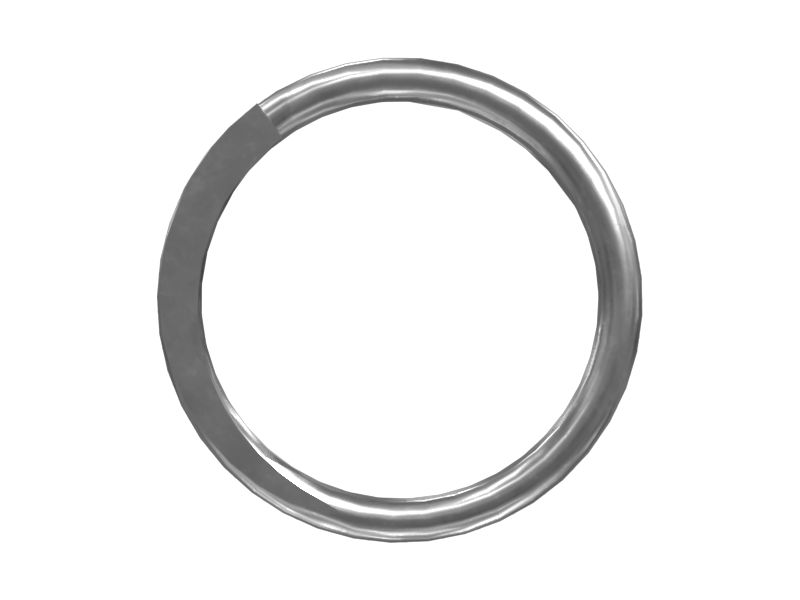

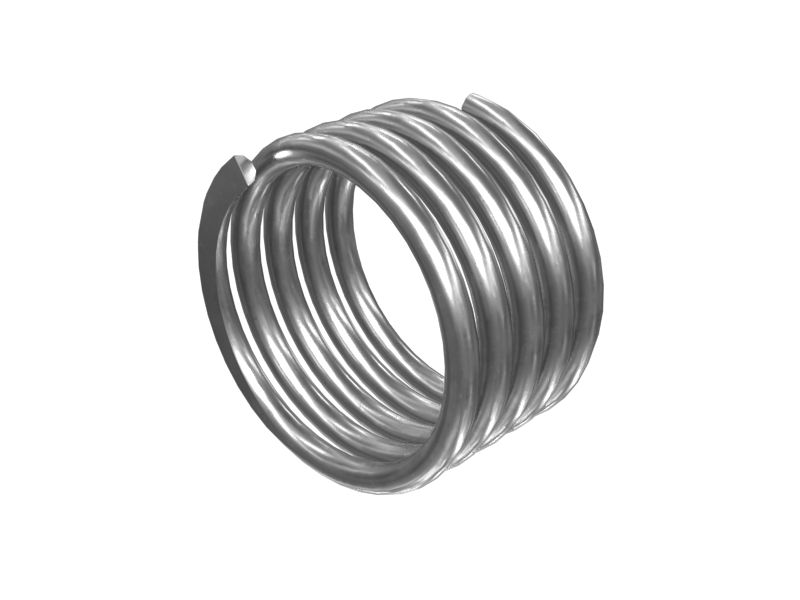

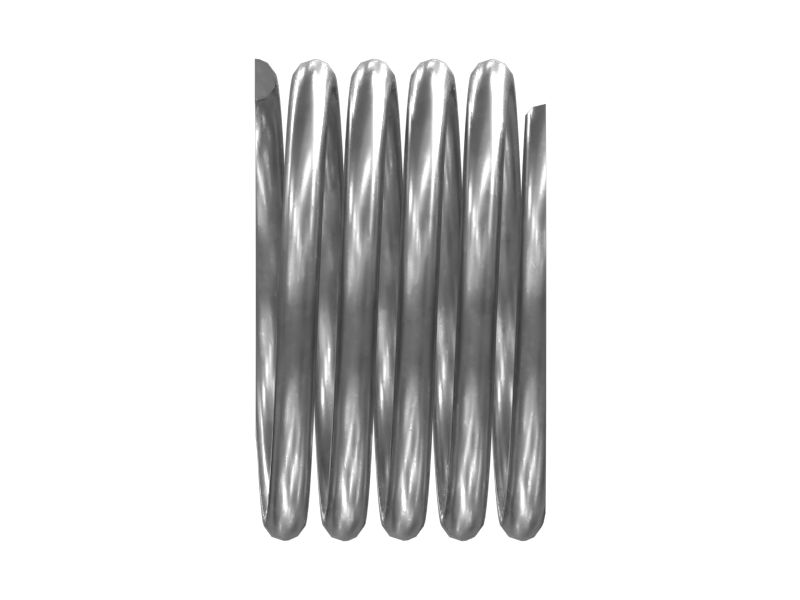

134-5017: ПРУЖИНА

Description:
A Compression Spring is used inside the support assembly in the housing shaft of the electrohydraulic control group. Compression Springs are helical-designed springs for compression and tension whereby the Spring gets compressed (shorter) as more weight is applied. Compression Springs are used in mechanical systems because they allow for more efficient energy storage methods and provide a smooth change in resistance over time.

Attributes:
• Manufactured to precise specifications and are built for durability, reliability, and productivity.
• Provided with Total Coils of 5 and Active Coils of 4.
• Provided with Square Ends because they provide a secure and stable for the spring to sit on a device or an assembly and Ground with 290°.
• Solid Length is 7.9 mm to help undergo without deforming or buckling
• Provided With Right-hand wound helical coil helps to maintain their shape and stability.

Applications:
A compression spring is used in between a washer hard in the housing shaft of the electrohydraulic control group, anything that requires stored energy within the spring. Widely used in Cat 824G and 834G Wheel Type Tractor, 825G, 826G and 836G Compactor, 950G, 962G, 966G, 972G, and 980G Wheel Loader, TR35 and TR43 Powertrain

• Inner Diameter (in): 0.37

• Inner Diameter (mm): 9.41

• Length (in): 0.88

• Length (mm): 22.4

• Outer Diameter (mm): 15.1

• Outside Diameter (in): 0.59

• Spring Type: Compression

• Wire Size (in): 0.06

• Wire Size (mm): 1.6

• Material: Stainless Steel
