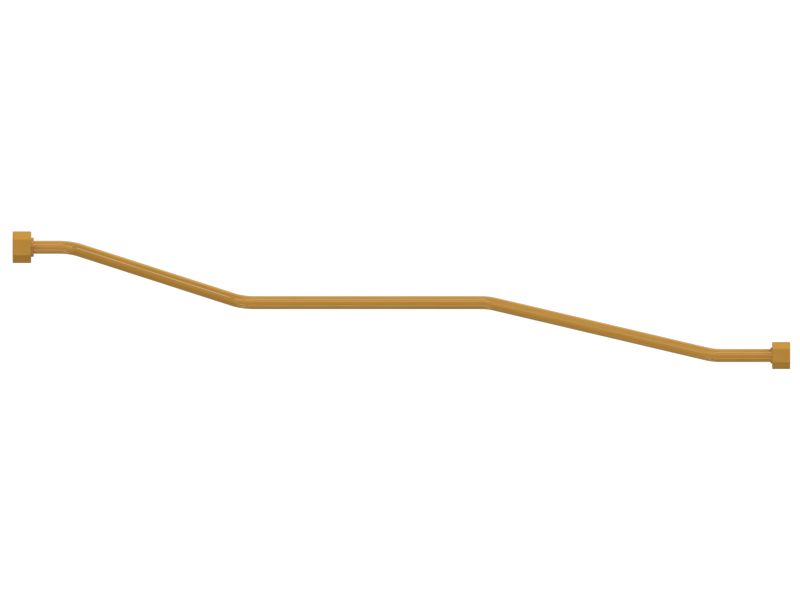

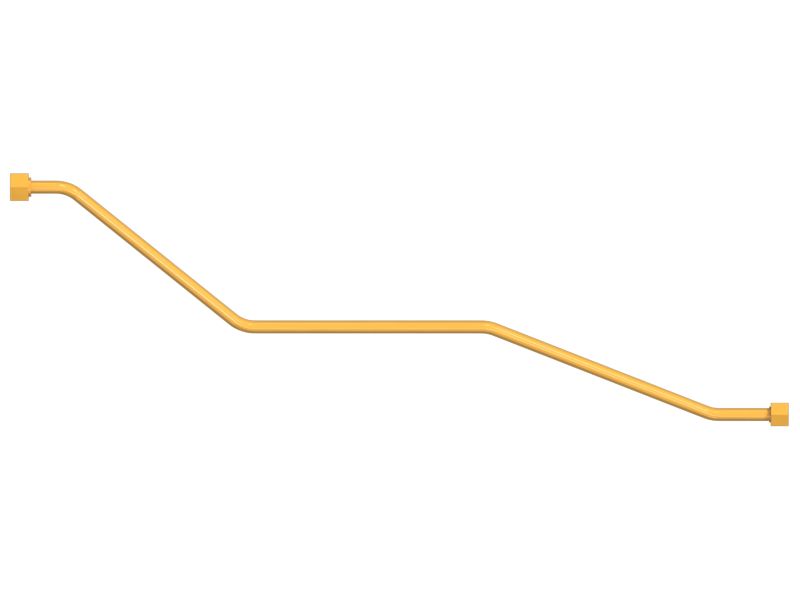

134-2422: ТРУБКА В СБОРЕ

The Brake Cooling Lines Tube Assembly is used for fluid circulation and heat dissipation in the brake unit, It consists of a tube O ring face seal nuts and sleeves on both ends and is connected to the check valve and the brake unit. When the brake system is in operation, the assembly allows for the flow of cooling fluid, to circulate through the brake system, dissipating heat generated during braking.

Attributes:
• Withstands surge pressure of 8600 kPa
• Provide with O ring face seal nut and sleeve connections to ensure a secure and leak-free connection, maintaining the integrity of the brake cooling system

Applications:
The Brake Cooling Lines Tube Assembly facilitates the cooling of the front axle brake system. As the brake system operates, it generates heat due to friction. The assembly enables the circulation of cooling fluid to dissipate this heat, preventing brake fade and ensuring optimal braking performance.

• Material: STEEL,Alloy Mixed

• Outer Diameter (mm): 19

• Outer Diameter (in): 0.75

• Approximate Overall Length (mm): 1267
