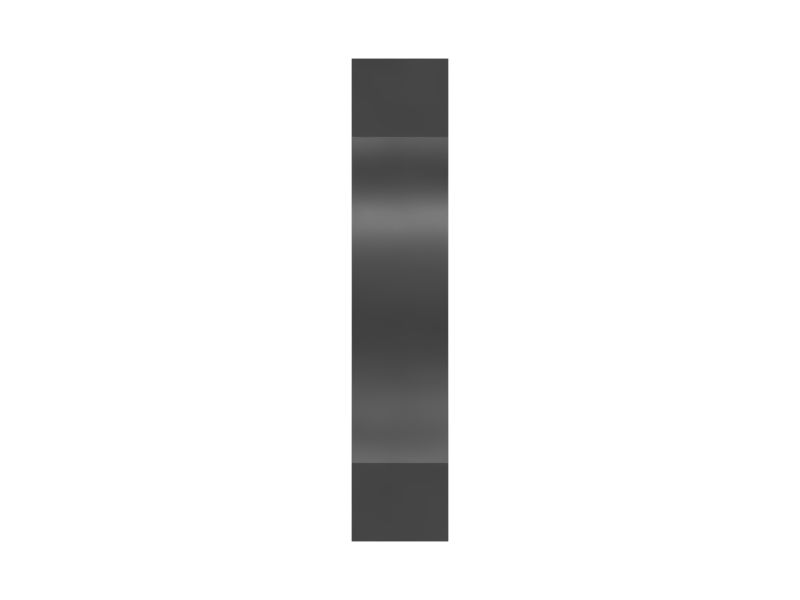

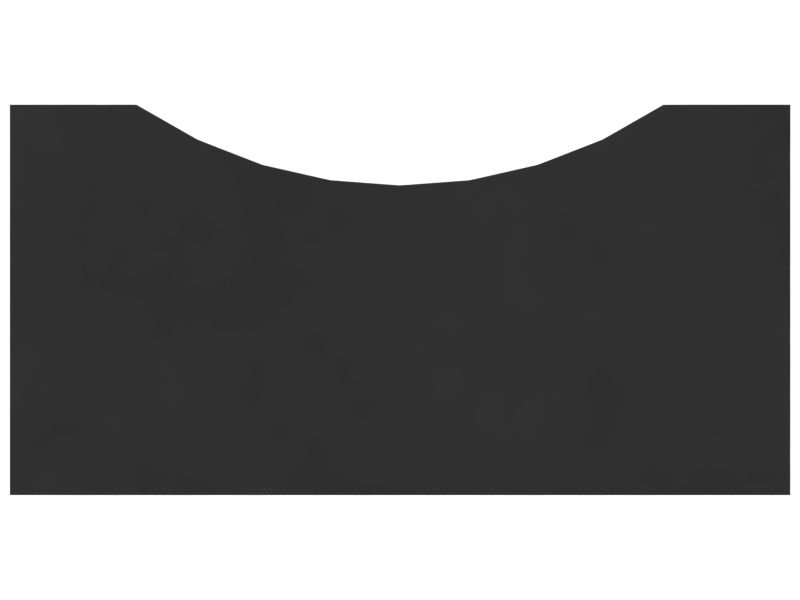

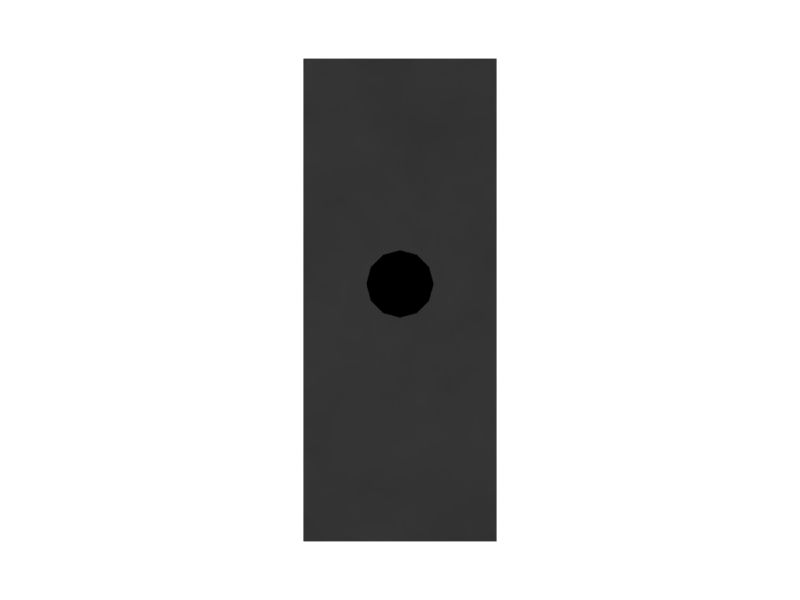

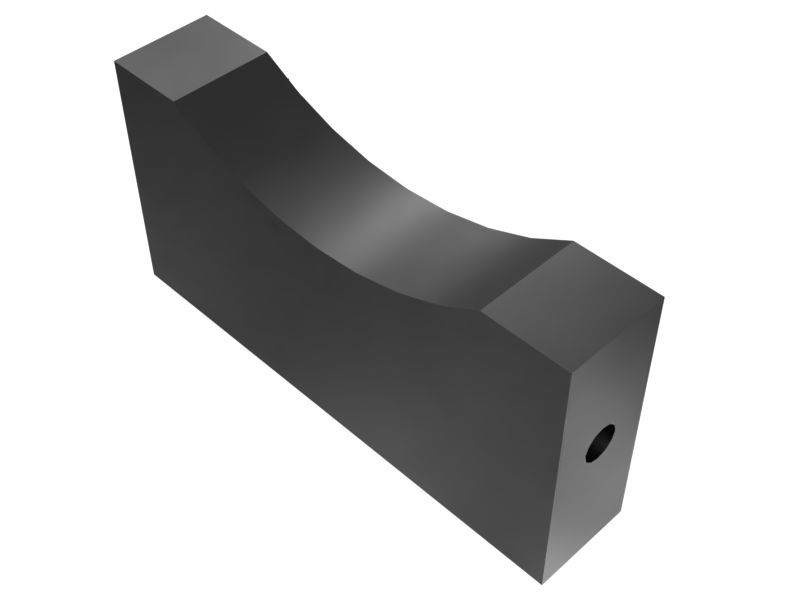

133-2239: ПЛАСТИНА

A Boom Cylinder Guard Mounting Plate serves as a mounting platform for the boom cylinder guard. It is to be attached to the hydraulic boom cylinders, holding the guard assembly that protects the cylinder, fluid-carrying hoses, and tubes of the hydraulic cylinder lines from damage and impacts during operation. It is to be clamped with the cylinder, providing a mounting point for the guard and clamps to be fitted, ensuring proper alignment and support for the guard.

Attributes:
• Provided with 4 mounting holes to fit the fastener of size M12
• Helps distribute the load and forces exerted on the boom cylinder guard, minimizing stress and potential structural damage
• Suitable to fit the cylinder with an outer diameter of 181mm

Applications:
A Boom Cylinder Guard Mounting Plate is used to hold and secure the guard which provides a protective shield to the hydraulic cylinder, ensuring the position of the guard. It enhances the structural integrity of the boom assembly by providing additional reinforcement and support.

• Material: Structural Steel
