130-5859: ПЛАСТИНА РЕАКТИВНАЯ

Description:
Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine. Cat reaction plates are designed to work with braking systems, providing critical friction to slow, stop or hold a machine stationary.

Attributes:

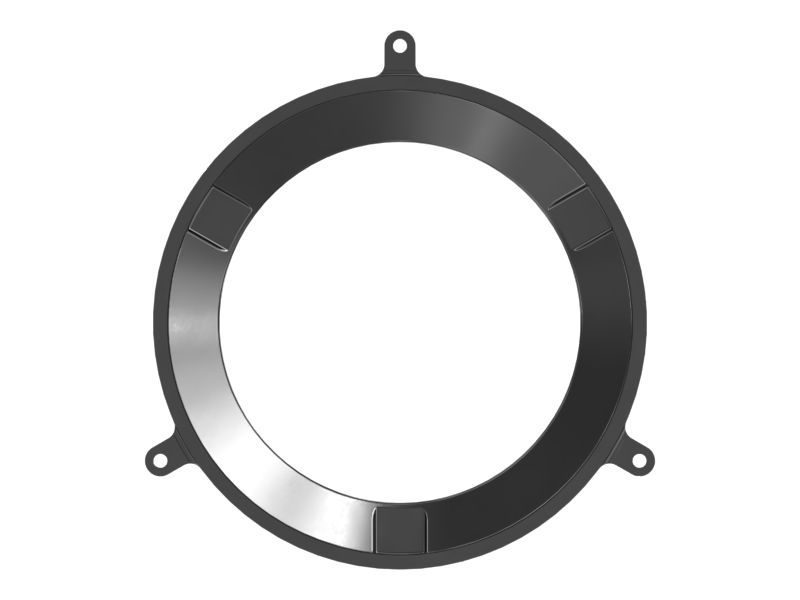

• Cast iron reaction plate
• Three external tabs provide exact OEM fit
• Material and heat treat reduce plate wear and improve durability
• Surface finish requirements maximize brake life
• Provide sufficient force and torque reaction to the brake group and allows braking performance to meet applicable certification requirements

Application:
Consult your owner’s manual or contact your local Cat Dealer for more information.

• Material Description: Cast Iron

• Inside Diameter (mm): 353

• Outside Diameter (mm): 482

• Width (mm): 41.8

• Inside Diameter (in): 13.897

• Outside Diameter (in): 18.976

• Width (in): 1.645

• Material: Gray (Flake) Iron,Ductile (Spheroidal) Iron
