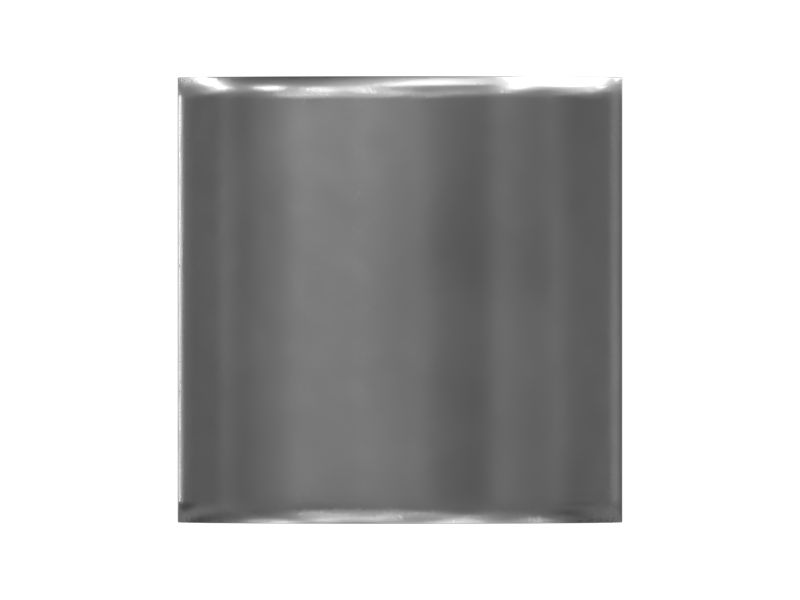

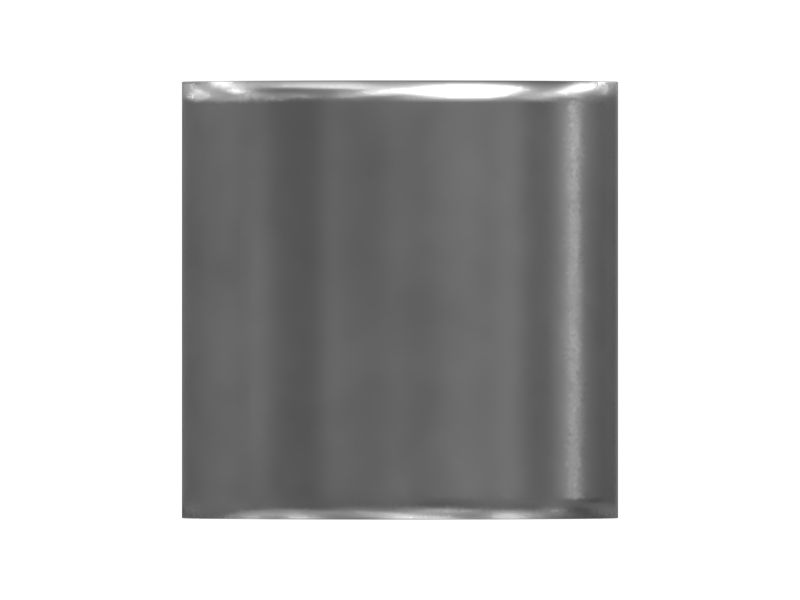

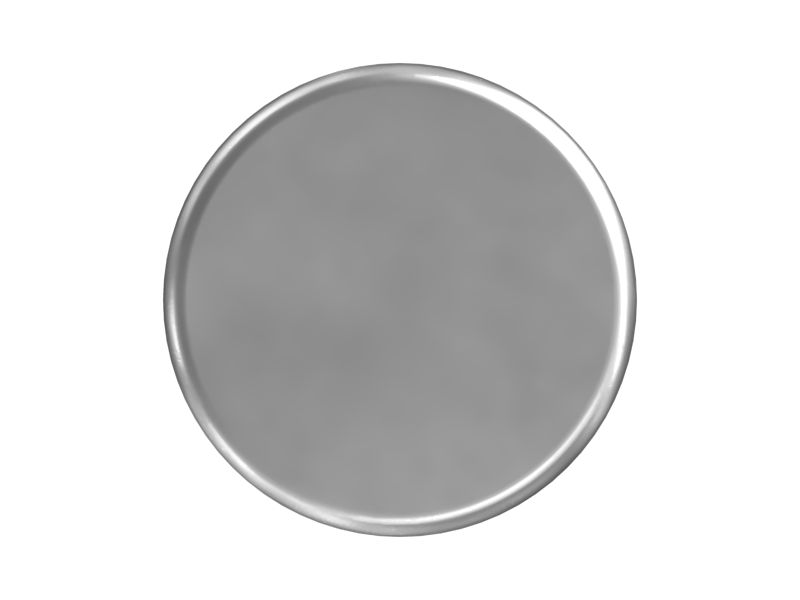

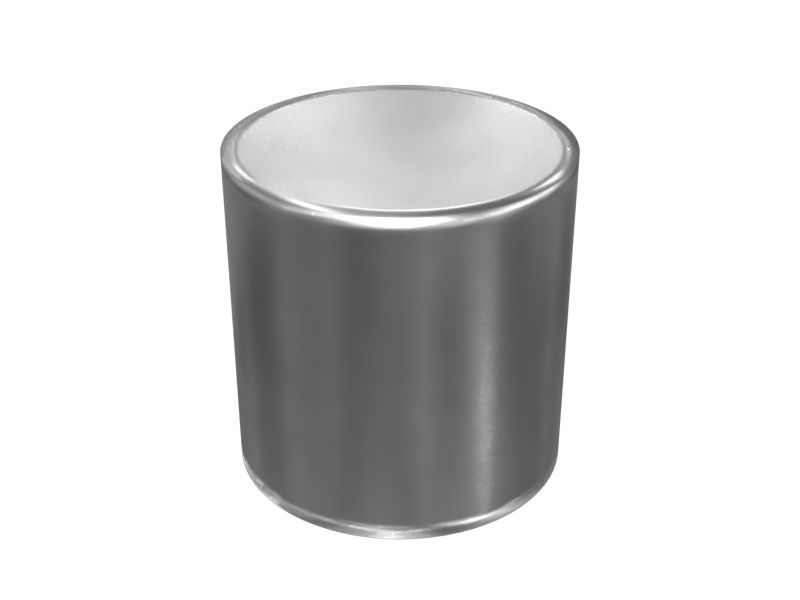

125-7008: ГАЙКА

A Nut is a type of fastener used secure a component onto a threaded shaft or rod. It is typically made from strong materials like steel and circular in shape with small notches around the circumference of the nut and designed specially to fit into corresponding holes of the component.

Attributes:
Manufactured to precise specifications and built for durability, reliability, and product
Designed to handle high torque and vibrational stress.

Applications:
A Nut is used to connect components together in a Hydraulic cylinder, mostly used in Cat® 206, 206B, 212, 212B, M312, M313C, M313D, M314, M314F, M315, M315C, M315D, M315F, M316, M316F, M317, M317D, M318, M318C, M318D, M320, M322C, M322D, M324D, M325C, MH3022, MH3024 and MH3026 Excavators, M318D, M322D, MH3022, MH3024, and MH3026 Material Handler.

• Outside Diameter (in): 1.96

• Outside Diameter (mm): 50

• Nut Type: Round (Spanner or Bearing)

• Thread: M35 x 1.5

• Weight (kg): 0.06

• Weight (lb): 0.13

• Thread Size (dia x pitch) (mm): M35x1.5

• Class or Grade: See Drawing

• Hand of Thread: LH
