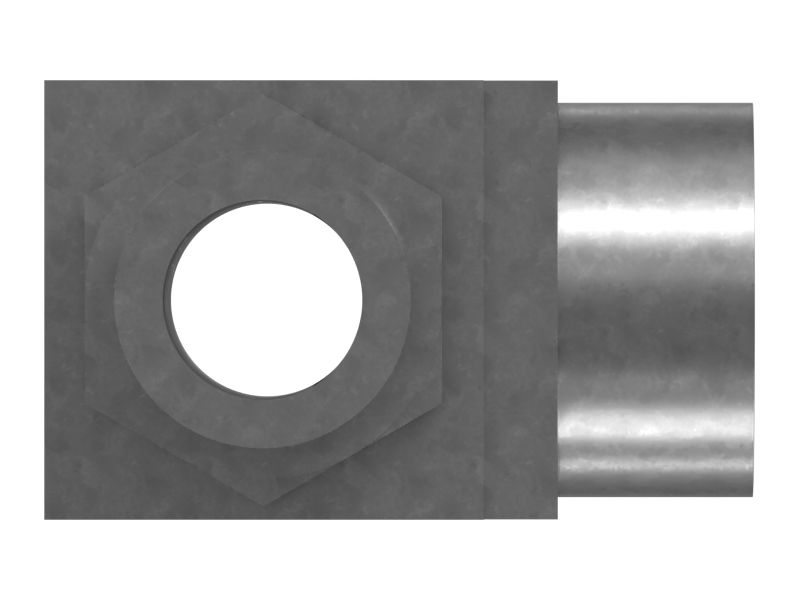

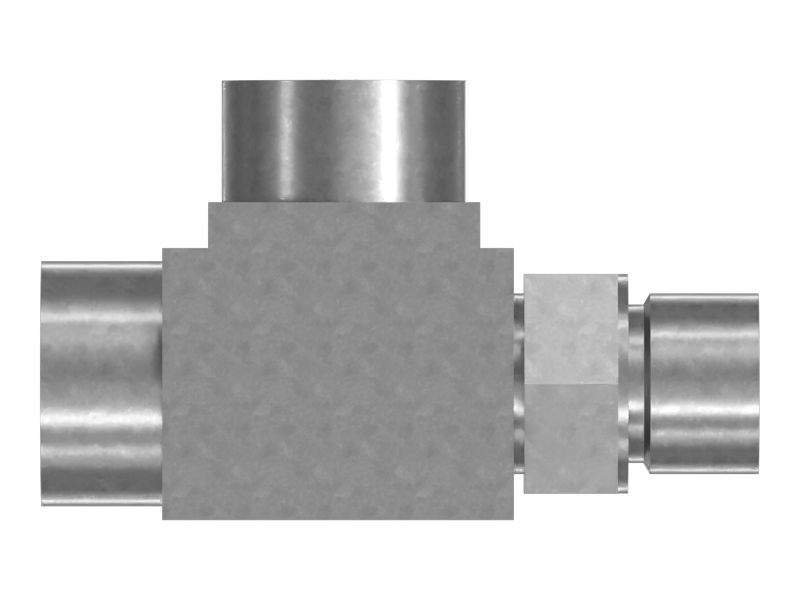

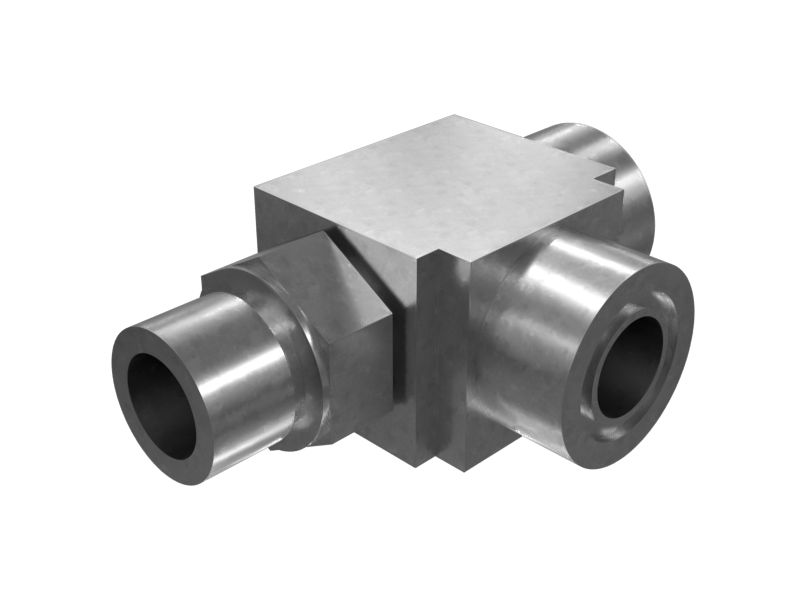

122-9088: ТРОЙНИК ДРОССЕЛЬНЫЙ

Description:
A Tee Adapter is a specific type of hydraulic fitting that allows for the connection of hydraulic lines or hoses in a T-shaped configuration while providing a secure and leak-proof seal through the O-ring face seal.

Attributes:
• Ensures that each branch receives an appropriate amount of flow based on the system requirements.
• Helps distribute the hydraulic fluid flow from the piston pump to multiple branches or circuits.
• Minimizing the risk of fluid leakage and maintaining the integrity of the hydraulic system.

Application:
A Tee Adapter is used to distribute or collect hydraulic fluid flow from different parts of the piston pump, such as the inlet, outlet, or control ports. They are mainly used in Cat 1190, 1190T, 1290T, 2290, 2390, 2391, 2491, 2590, 511, 511B, 521, 521B, 522, 522B, 532, 541, 551, 552, TK1051, TK711, TK721, TK722, TK732, TK741, TK751 and TK752 Tree Harvester, 24M Motor Grader, 5110B Excavators, 583T Pipelayer, 773F, 775F, 777, 777G, 793, 793D, 793D, 793D, 793F, 794, 796, 797F and 798 Truck, 834, 902, 906, 908, 910H, 924, 924K, 926, 926M, 930, 930K, 930M, 938, 938K, 938M, 966, 966K, 966L, 966M, 972, 972K, 972L, 972M, 980, 980H, 982, 988, 988K, 990, 990K, 991K, 992H, 992K, 993K, R1700 and R2900 Wheel Loader, 834K, 844, 844K, 854 and 854K Wheel Type Tractor, 836 and 836K Compactor, 844K Wheel Tractor Scrapers, 953, TR16, TR28 and TR43 Powertrain, 953C, 963C and 973C Track Loader, AP-1000D, AP-655C, AP500F, AP555F, BG-2255C and BG-260D Paving Equipment, C175-20, C32, C32B and C9.3 Engine (Piston), C32 and C9.3 Generator Set, C9 Power Systems, D11T, D3G, D3K2, D4G, D4K2, D5G, D5K2, D6N, D6R, D6T, D7R, D7RX, D8, D8R and D8T Track Type Tractor, HF201, HF201B and HF221 Harvester Head, R1700 Underground Mining.

• Hex Size (in): 1.06

• Coolant and Urea Compatible Seal: 294-9072 (1-3/16-12), 6V-3251 (7/8-14)

• Hex Size (mm): 26.99

• Oil and Fuel Compatible Seal: 228-7092 (1-3/16-12), 238-5081 (7/8-14)

• Transmission and Hydraulic Oil Compatibile Seal: 2M-9780 (7/8-14), 6V-9746 (1-3/16-12)

• Length (in): 1.48

• Length (mm): 37.5

• Thread: 1-3/16-12, 7/8-14

• Weight (kg): 0.62

• Weight (lb): 1.37

• Width (in): 3.48

• Width (mm): 88.5

• Material: Carbon Steel
