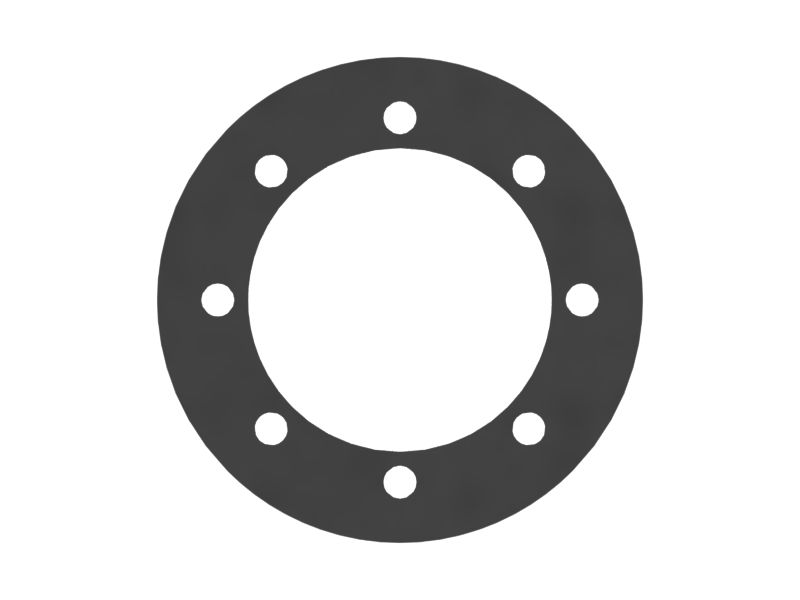

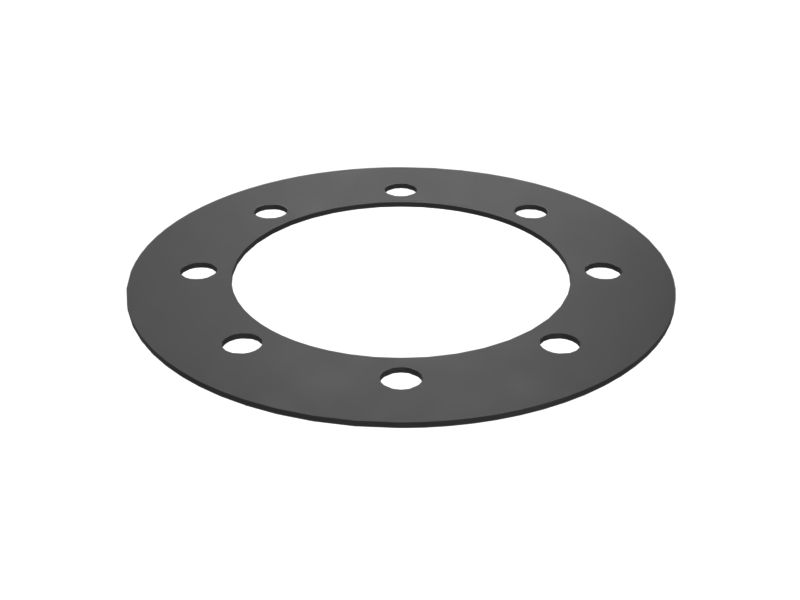

121-3917: ПРОКЛАДКА

Description:
A Crankshaft Pulley Spacer is a component mounted in between the Crankshaft Pulley. Spacers are typically made of a durable material such as steel. The size and shape of a spacer can vary depending on its intended use, but they are typically manufactured to very tight tolerance to ensure accurate spacing between components.

Attributes:
• Provided with 8 holes of diameter 11mm to fit the fastener of size M10.
• Protects components from damage or wear by preventing them from rubbing against each other.

Applications:
A Crankshaft Pulley Spacer is used to create space between Crankshaft Pulley, mostly used in Cat 12M, 140, 140M, 150, 160, and 160M Motor Grader, 3116, 3126, 3126B, 3126B, 3126E, 3126E, C-9, C7, C9 and C9.3 Engine (Piston), 725C Articulated Truck, 973, 973C and 973K Track Loader, C9 Generator Set, C9.3 Engine-General Platform (C9), D6, D6R, D6T and D7R Track Type Tractor.

• Inner Diameter (in): 3.94

• Inner Diameter (mm): 100.1

• Material: Steel,Carbon Steel

• Outer Diameter (in): 6.3

• Outer Diameter (mm): 160

• Thickness (in): 0.06

• Thickness (mm): 1.6

• Weight (kg): 0.14

• Weight (lb): 0.3
