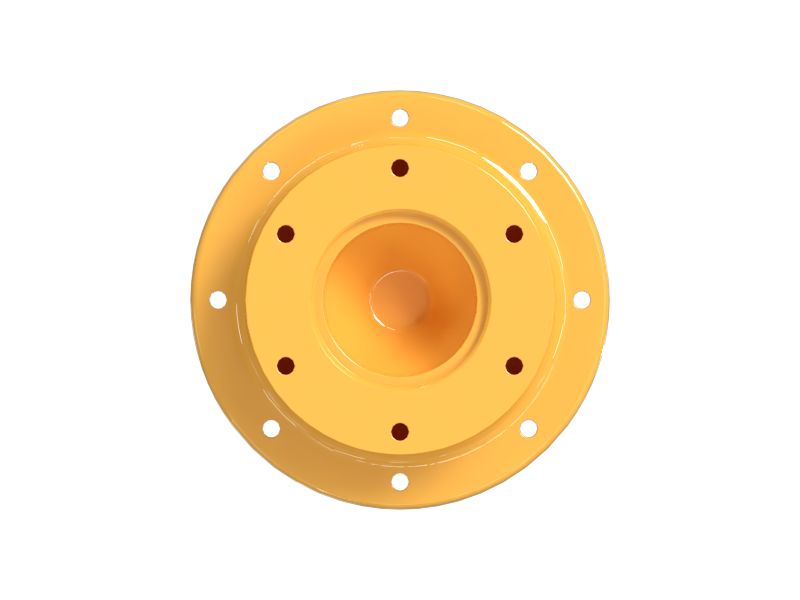

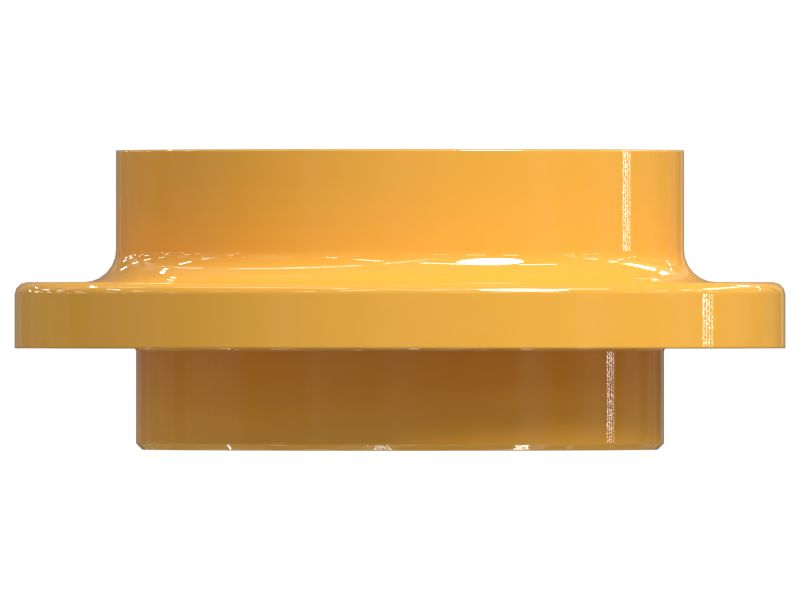

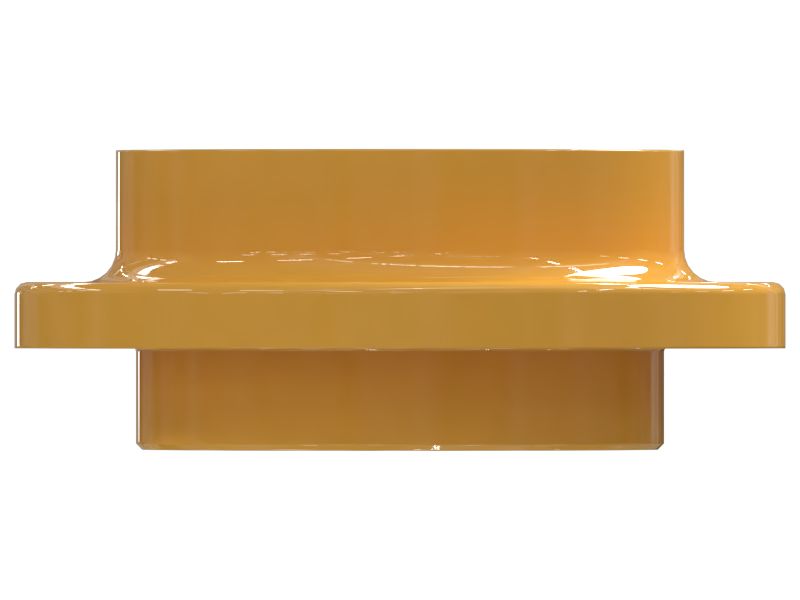

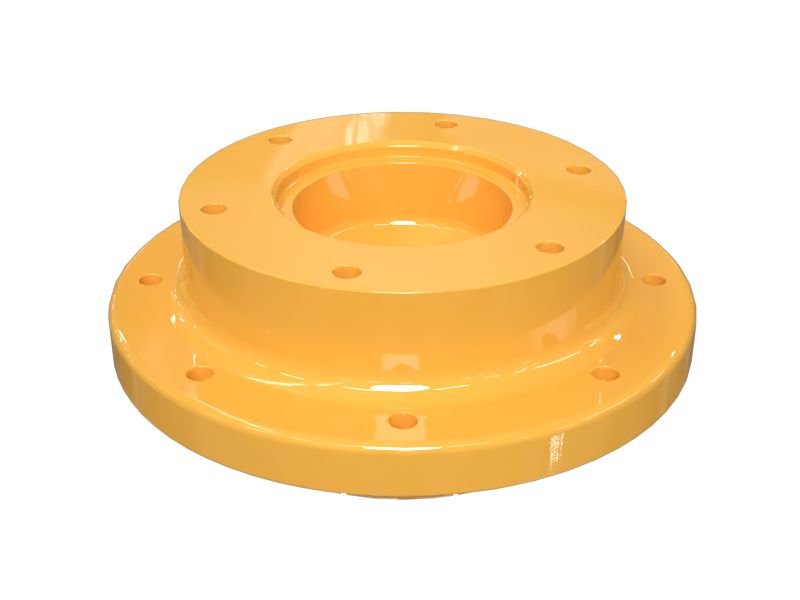

119-4763: ПЕРЕХОДНИК

An engine fan drive adapter is a component used to connect the fan to the engine's drive system. The pulley that is attached to the engine's crankshaft, the shaft that extends from the pulley, and the bearing or bushing that supports the shaft make up the standard fan drive adapter. The fan drive adapter is usually made to transfer power from the engine to the fan so that it can spin at a preset speed. This draws air through the condenser and dissipates heat from the engine, helping to control the engine's temperature.

Attributes:
● Material gray iron casting is used, which provides durable and heat-resistant.
● Provided with 14 holes diameter of 8.2mm with 3/8inch thread.

Application:
The engine fan drive adapter is used in maintaining the optimal operating temperature of an engine and ensuring its reliable performance.

• Outer Diameter (mm): 190

• Outer Diameter (in): 7.48

• Width (mm): 73.7

• Width (in): 2.90

• Hole Size (mm): 8.2 (8x)

• Hole Size (in): 0.32 (8x)

• Material: Gray Iron Casting,Gray (Flake) Iron

• Approx. Weight (kg): 4.71

• Approx. Weight (lb): 10.39
