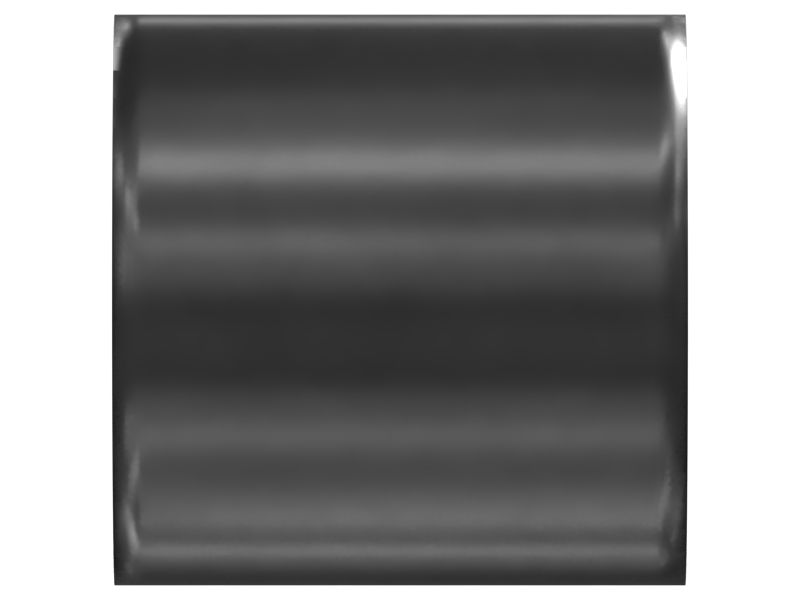

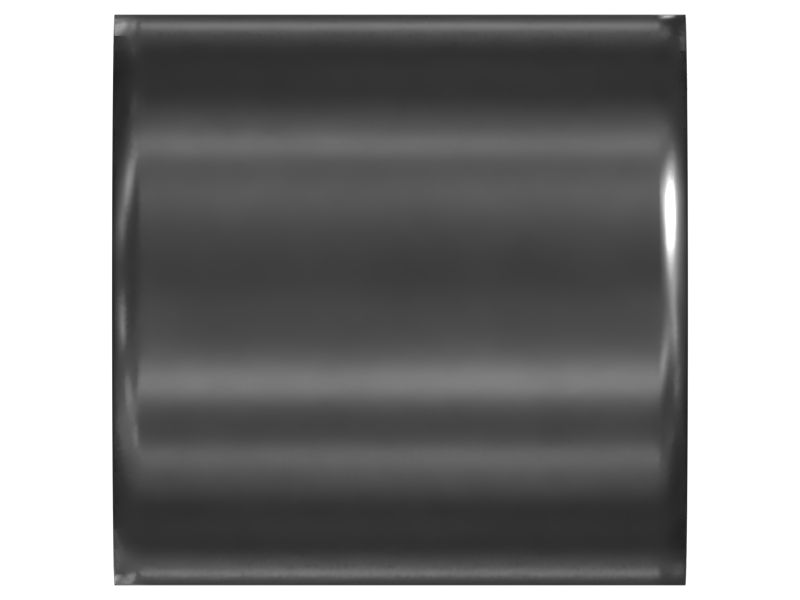

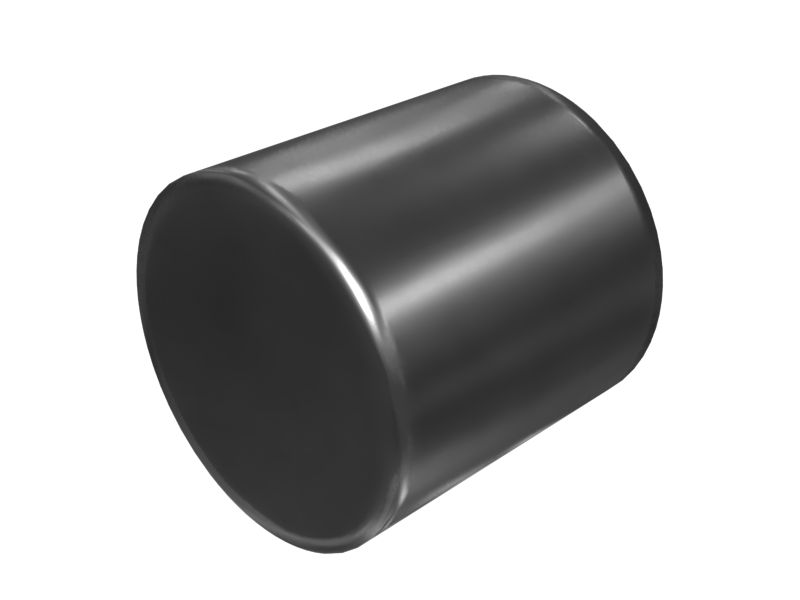

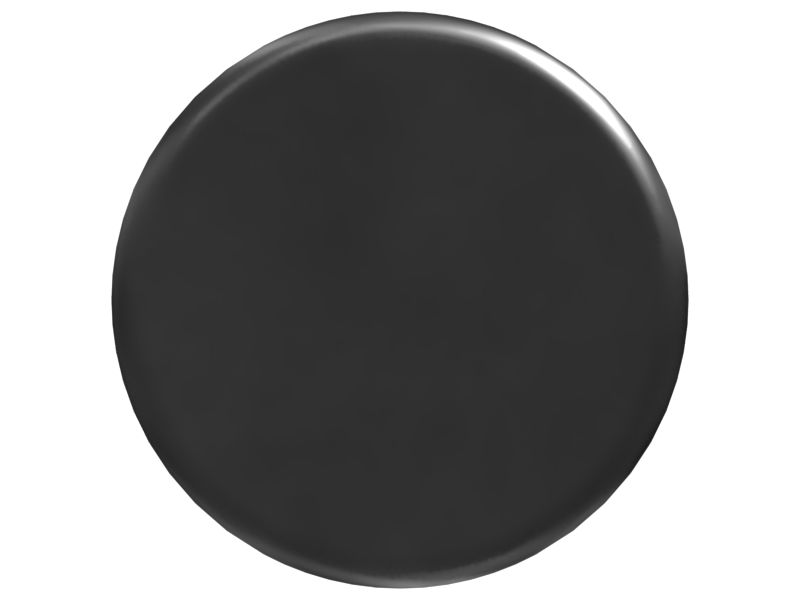

118-3127: КОЛЬЦО

Description:
A Wear Ring is a type of seal used to prevent the loss of fluid or gas in hydraulic systems. It is typically made of an elastic material and is designed to fit into a rectangular groove or gland, machined into the mechanism to be sealed. The ring works by sitting in a groove or channel between two surfaces that are going to be mated or pushed together.

Attributes:
● Machined precisely to the correct dimensions and tolerances to give improved durability
● Provides resistance to chemicals and other environmental factors

Applications:
A Wear Ring is used to seal the clearance between the mating parts, this is mostly used in Cat M315, M315C, M315D, M315F, M316, M316C, M316D, M316F, M317, M317F, M318, M318C, M318D, M318F, M319, M320, M320D, M320F, M322D, M324D, MH3022, MH3024 and MH3050 Excavators, M318D, M322D, MH3022, MH3024, and MH3026 Material Handler.

• Axial Thickness (mm): 14.8

• Inner Diameter (in): 3.74

• Inner Diameter (mm): 95

• Outer Diameter (in): 3.94

• Outer Diameter (mm): 100

• Radial Thickness (mm): 2.5

• Weight (kg): 0.01

• Weight (lb): 0.03
