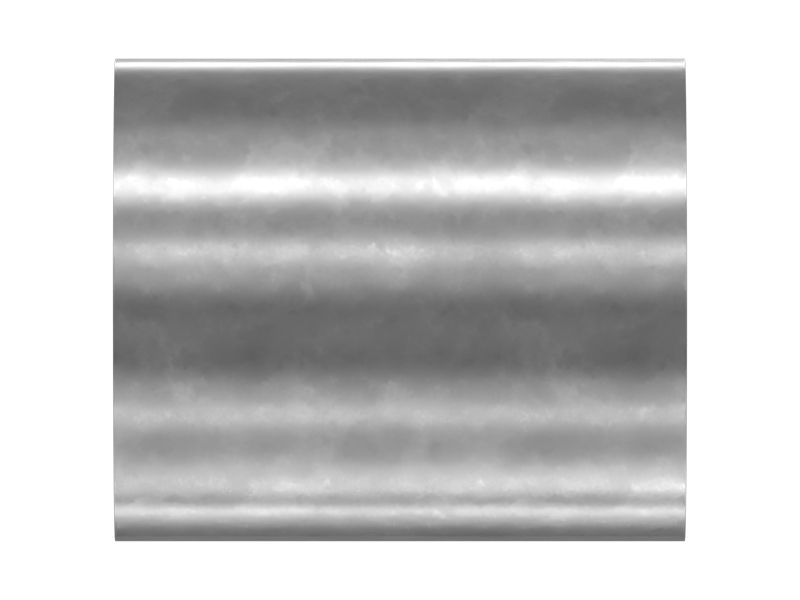

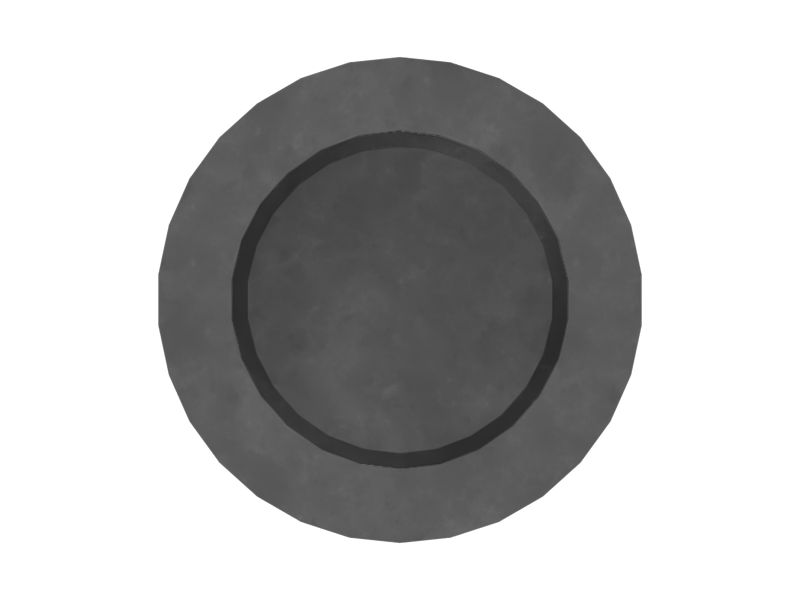

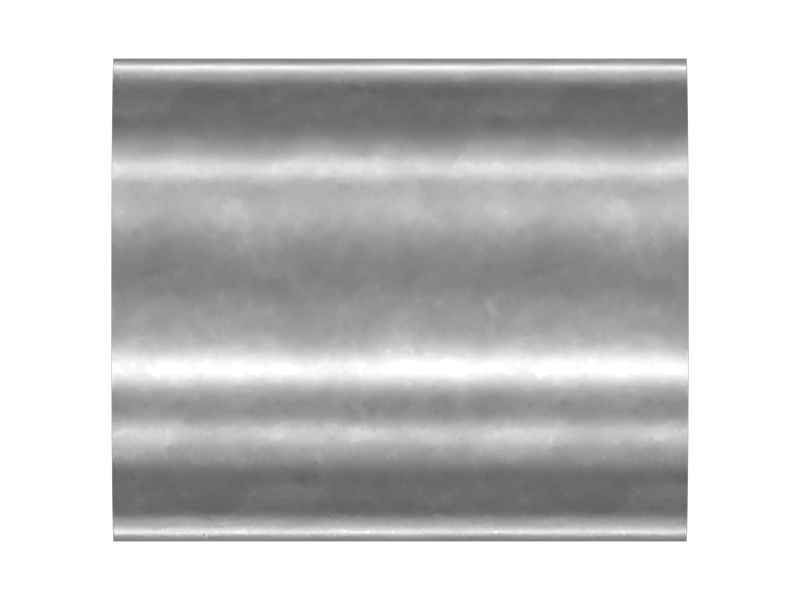

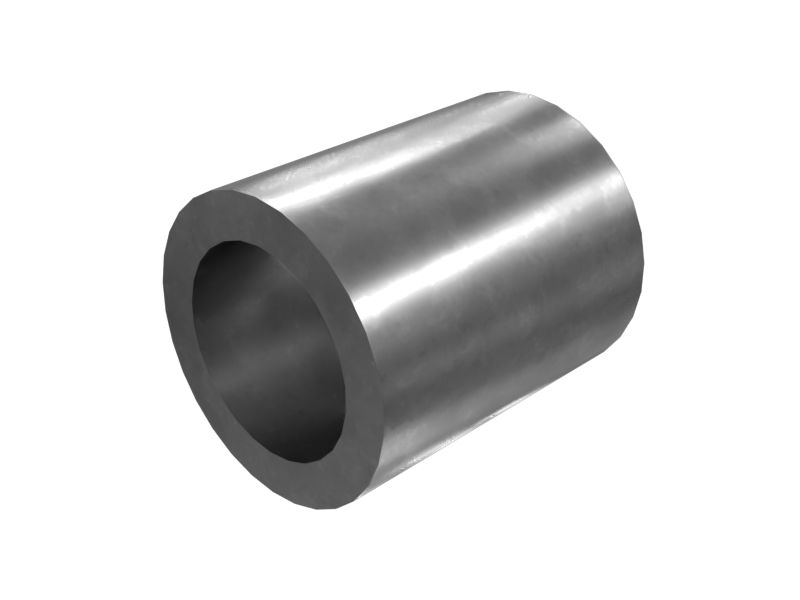

118-1312: ПРОКЛАДКА

Description:
A Spacer, also known as a clearance spacer or standoff, is a small cylindrical part used to create a gap or distance between two components. They are also used to provide positioning assistance between components. Spacers are typically made of a durable material such as metal or plastic. They come in a range of sizes and thicknesses.

Attributes:
• Handles high pressure without deforming or breaking.
• Withstands high-impact loads and stresses.

Applications:
A Spacer is used inside the cover of the Steering Valve, mostly used in Cat 304.5 Excavators, 611, 611G, 613C, 613G, 615, 615C, 615D, 615G, 621E, 621F, 621G, 631E and 814 Wheel Tractor Scrapers, 613C Wagon, 814B, 814F, 824C and 834B Wheel Type Tractor, 815B, 815F, 816B, 816F, 825C, 826C and 836 Compactor, 936, 936E, 936F, 950, 950B, 950E, 950F, 960F, 966C, 966D, 966E, 966F, 966R, 970F, 980B, 980C, 980F, 980S, 988B, 988F, 992C, 992D, G936, IT28B, R1600, R1600G, R1700G, R2900, R2900G and R3000H Wheel Loader, AD30 Truck, D250B, D25C, D300B, D30C, D35-HP, D350C, D35C, D400, D44, D44B, D550 and D550B Articulated Truck, TH28, TH35, TR28 and TR35 Powertrain

• Inner Diameter (in): 0.35

• Inner Diameter (mm): 8.89

• Material: Steel,Low Alloy Steel,Carbon Steel

• Outer Diameter (in): 0.5

• Outer Diameter (mm): 12.7

• Thickness (in): 0.59

• Thickness (mm): 15

• Weight (kg): 0.01

• Weight (lb): 0.03
