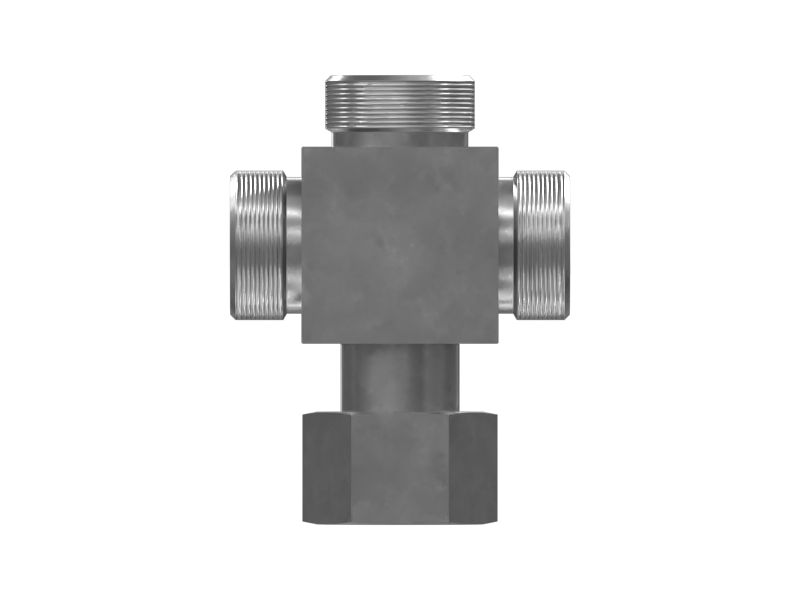

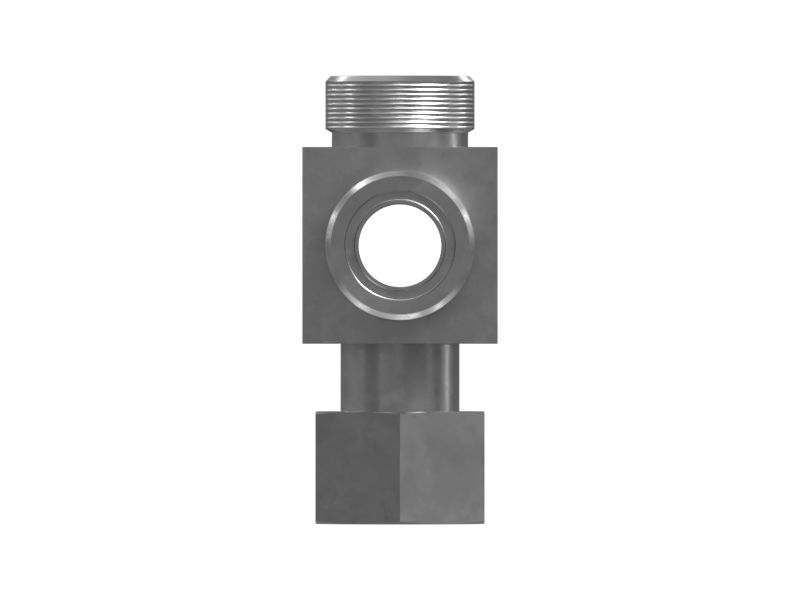

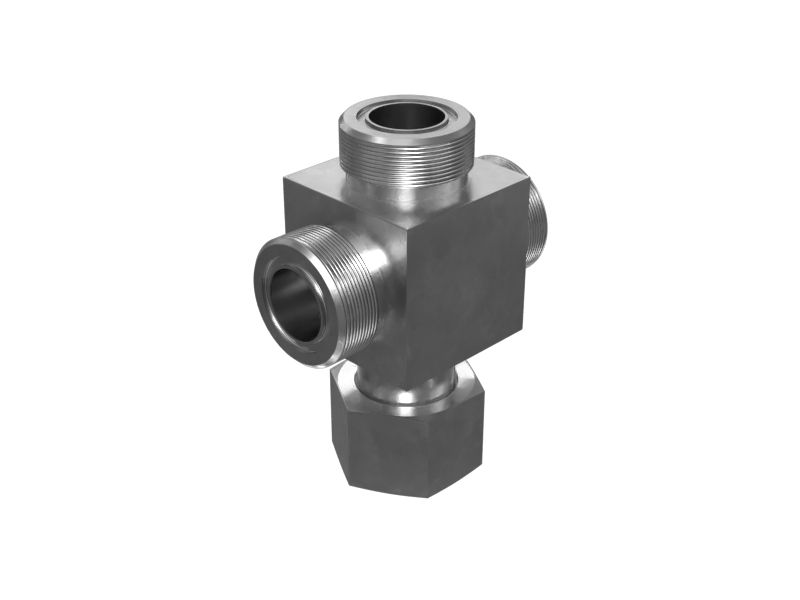

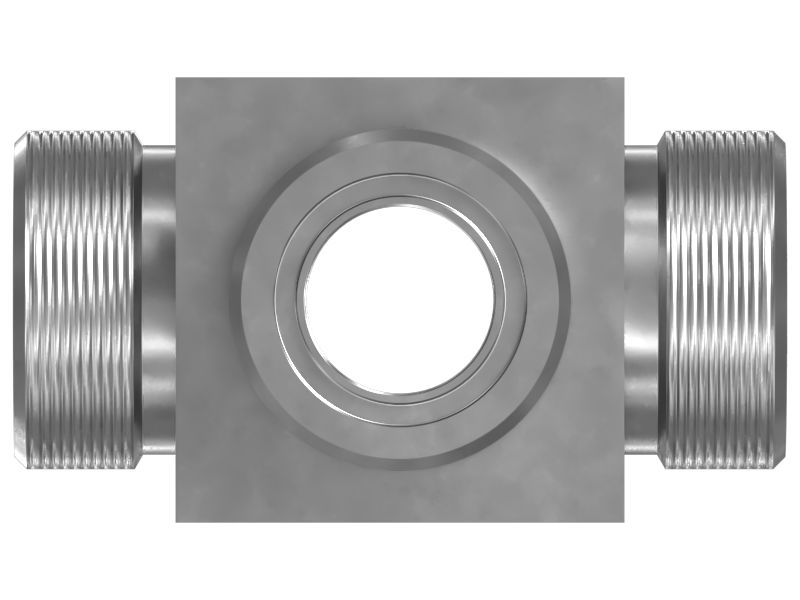

117-5208: КРЕСТОВИНА

A Cross Adapter is a type of adapter or connector that allows the connection between different types or sizes of connectors. It is designed to bridge the gap between two incompatible connector types, enabling them to be joined together.

Attributes:
Manufactured to a precise specification and are built for durability, reliability, and productivity.
ORFS adapters Designed for resistance to leakage and high-pressure performance.

Applications:
A Cross Adapter is used in Hydraulic Lines to provide leakproof performance Cat® 415F, 416F, 420, 420F, 422F, 427F, 428, 428F, 430F, 432, 432F, 434, 434F, 444, and 444F Backhoe, 420F, 962H, 966H, and C18 Oem Applications, 539, 550, 550B, 560B, 570, 570B, 580 and 580B Tree Harvester, 560 Harvester - 6 Wheel (Tree), 6015, 6015B, 6020B, 6030, and 6060 Excavators, 798 Truck, 950G, 950H, 962G, 962H, 966H, 972H, 992G, and IT62H Wheel Loader, 973C Track Loader, AP355 and AP355F Paving Equipment, CG137-8 and G3520 Generator Set, CG137-8 Engine (Piston), D6R and D7E Track Type Tractor, HRD25 Underground Mining, MD6200 Drills.

• Transmission and Hydraulic Oil Compatibile Seal: 5K-9090 (1-7/16-12)

• Hex Size (in): 1.63

• Hex Size (mm): 41.28

• Oil and Fuel Compatible Seal: 228-7093 (1-7/16-12)

• Length (in): 3.74

• Coolant and Urea Compatible Seal: 415-2887 (1-7/16-12)

• Length (mm): 95

• Material: Connector,Carbon Steel

• Thread: 1-7/16-12

• Weight (kg): 1.14

• Weight (lb): 2.52

• Width (in): 3.27

• Width (mm): 83
