110-0552: СТУПИЦА В СБОРЕ

Description:

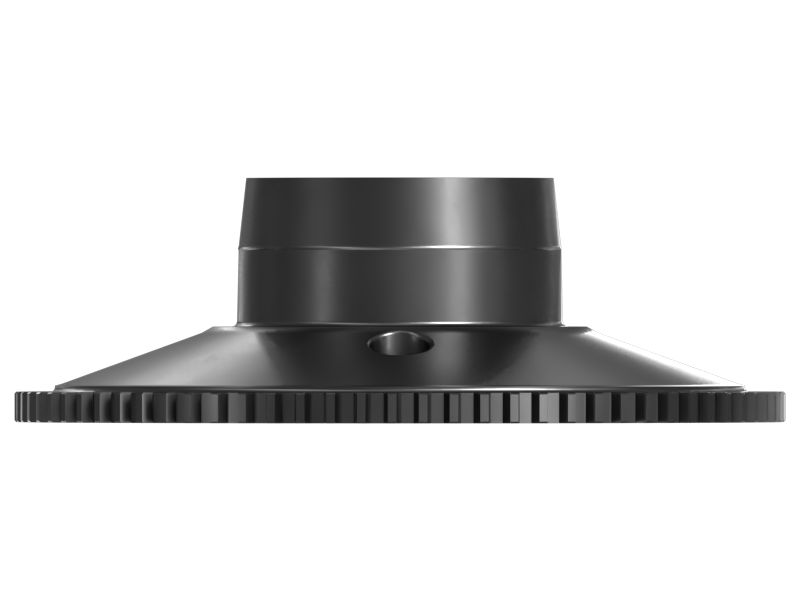

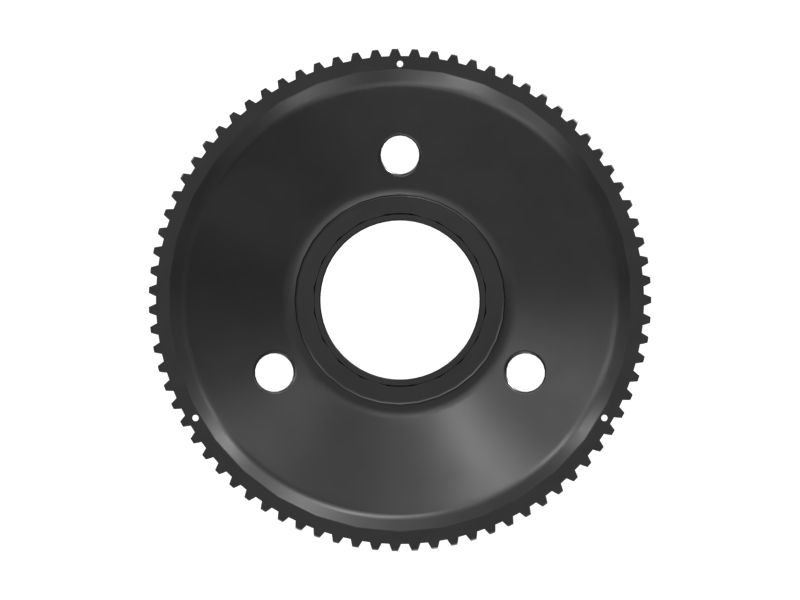

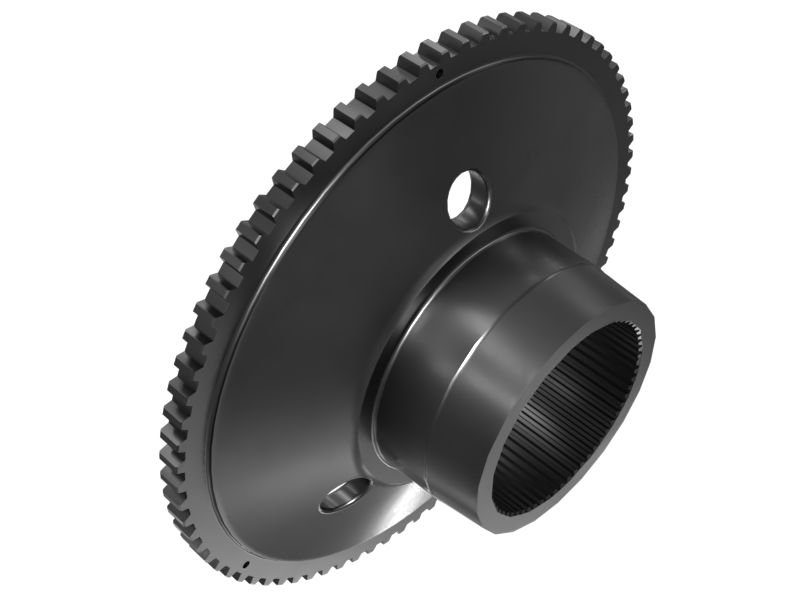

Reaction hubs like part # 110-0552 are used to retain the spindle bearing and center the wheel spindle to the ring gear and planetary carrier in the final drive.

Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine.

Attributes:
• Steel hub with sleeve bearing
• Bearing Bore Diameter: 155.575 mm (6.125 in)
• External Spline Number of Teeth: 79
• Internal Spline Number of Teeth: 64
• Width: 154.5 mm (6.082 in)
• Thread Size: M8x1.25 (3X)
• Hole Size: 38 mm (1.50 in) (3X)

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material: Steel

• Thread Size (mm): M8X1.25 (3X)

• Number of Teeth: 79 (External), 64 (Internal)

• Width (mm): 154.5

• Hole Size (mm): 38 (3X)

• Width (in): 6.08

• Hole Size (in): 1.50 (3X)
