109-5821: РАЗЪЕМ

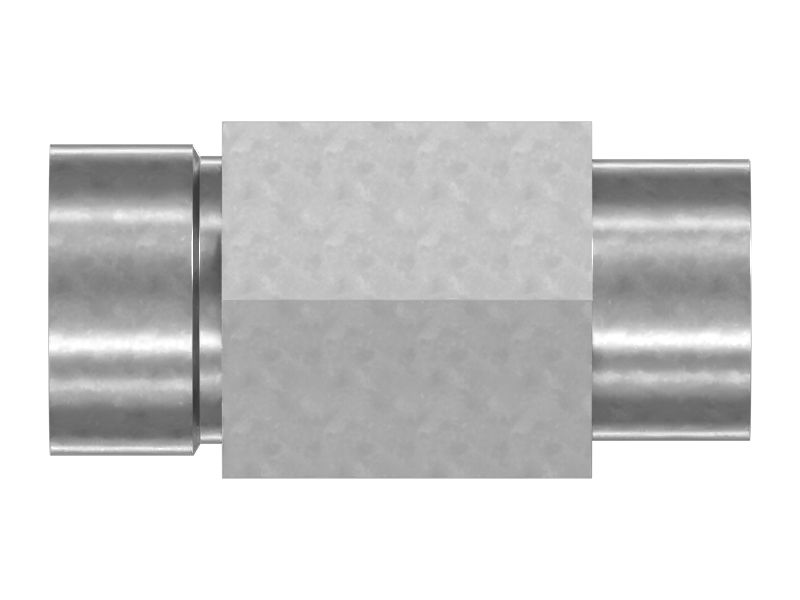

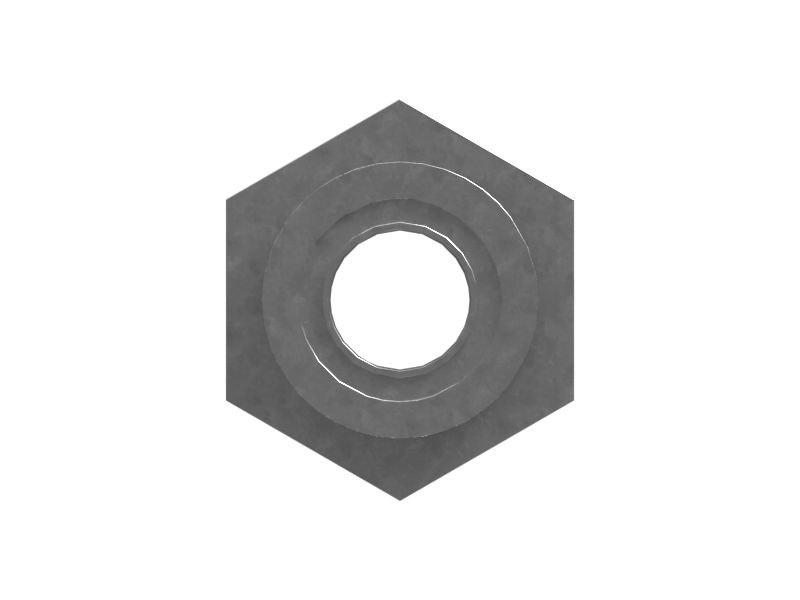

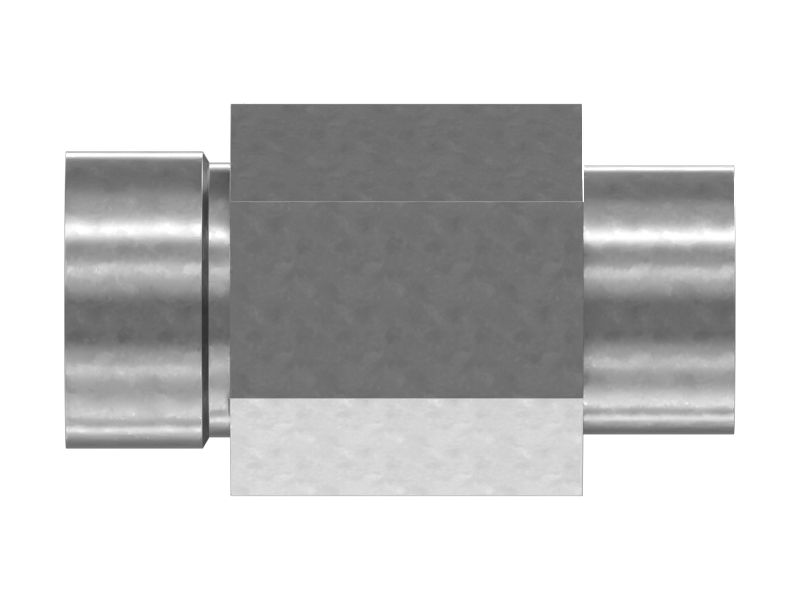

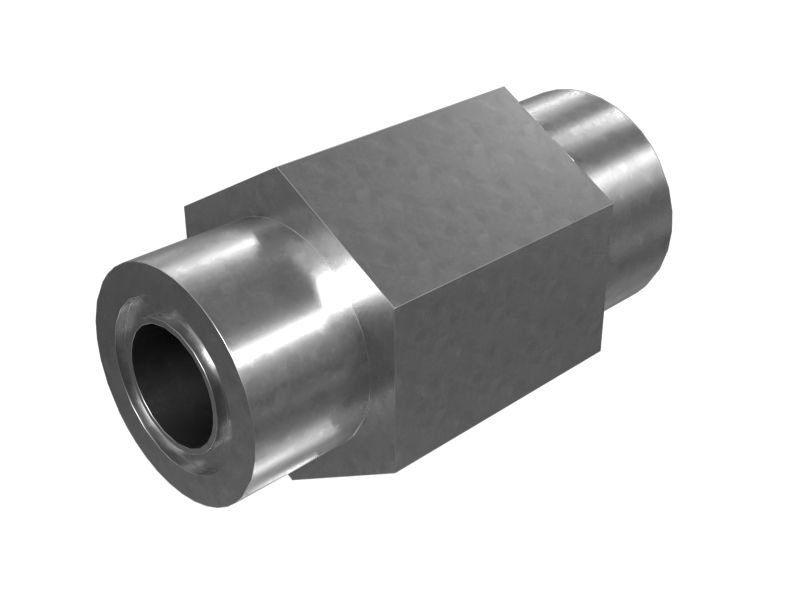

A Straight Adapter refers to a fitting used to connect two hydraulic components with different types of connections or sizes. These adapters provide a straight-through connection, allowing hydraulic fluid to flow between the components without any change in direction or modification of the fluid's path.

Attributes:
Manufactured to a precise specification and are built for durability, reliability, and productivity.
Ensures a leak-tight connection and enables the hydraulic fluid to flow smoothly.

Applications:
A Straight Adapter is used to connect Hydraulic Hoses to Main Control Valve Cat® 236D, 242D, 246C, 247C, 256C, 257D, 259D, 262C, 272C, 272D, 277C, 277D, 279C, 279D, 287C, 287D, 289C, 289D, 297C, 297D, 299C, and 299D Skid Steers, 304, 305, 305.5, 311, 311B, 312, 312B, 312E, 312F, 313B, 313D, 313F, 314D, 314F, 315, 315B, 317, 317B, 318B, 323D, 349E, 349F, and 352F Excavators, 525B and 535B Skidder, 583T and PL61 Pipelayer, 613H Wheel Tractor Scrapers, 784B, 785B, 789B, 793B, and 793C Truck, 938H, 980, 980L, 980M, 982, 982M, 988, 988K, 991K, 992H, 992K, 993K, IT38H, and R2900 Wheel Loader, 953C Track Loader, AP400, AP455, AP500, AP555, PM1125, PM1138, PM922, PM925, PM938, RM400, RM500, and RM500B Paving Equipment, CC7, CP34, CP5, CS34, and CS5 Compactor, D5R, D6, D6N and D8T Track Type Tractor, G315, G315B, H110, HM2615, HM4015 and S3015 Work Tools, MD6540 and MD6540C Drills, SE47 Screed, TR43 Powertrain.

• Hex Size (in): 1.5

• Coolant and Urea Compatible Seal: 294-9072 (1-3/16-12), 6V-5064 (1-5/16-12)

• Hex Size (mm): 38.1

• Oil and Fuel Compatible Seal: 228-7092 (1-3/16-12), 238-5084 (1-5/16-12)

• Transmission and Hydraulic Oil Compatibile Seal: 6V-9746 (1-3/16-12), 7M-8485 (1-5/16-12)

• Length (in): 2.95

• Length (mm): 75

• Material: Connector,Alloy Zinc,Carbon Steel,Structural Stee

• Thread: 1-3/16-12, 1-5/16-12

• Weight (kg): 0.49

• Weight (lb): 1.07
