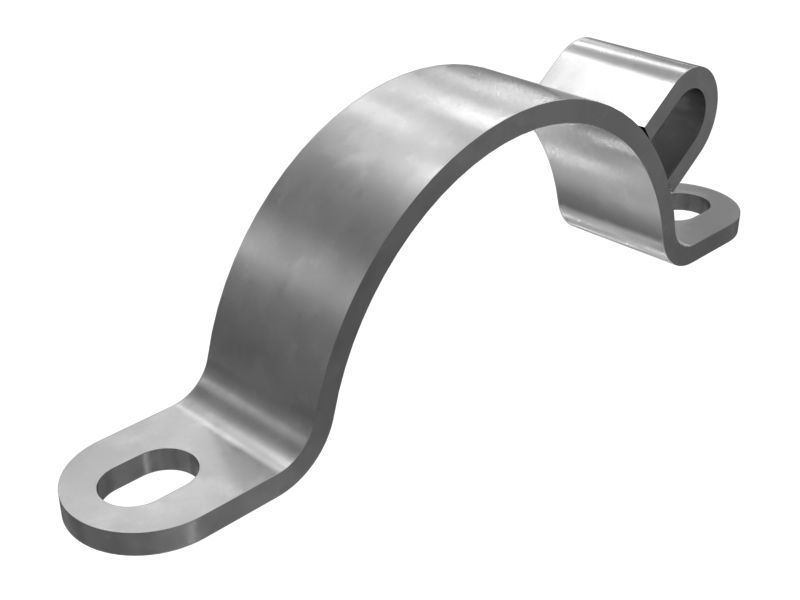

108-6170: ХОМУТ В СБОРЕ

A Single Tube Half Saddle Clamp is used to secure tubes in a fixed position. It has saddle that fits over the tube and a bolt or screw that tightens the saddle down onto the tube holding them securely in fixed place. This Clamp assembly consists of a saddle clamp and a hoop that is welded with the Clamp which prevents the clamp from rotating or loosening. They are often used in situations where it is not possible or desirable to mount the tube directly to the surface, such as when the surface is uneven or irregular.

Attributes:
• Suitable to clamp tube with outer diameter of 89mm
• Provided with 2 mounting slots and a hoop to fit the fastener of size M10
• Provided a hoop with thickness of 4mm and minimum weld length of 20mm, to lock with the flange.

Applications:
A Single Tube Half Saddle Clamp, along with the other half Clamp is used to hold or secure Tubes with the help of hoop and fasteners.

• Distance between retainer holes (in): 5.39

• Distance between retainer holes (mm): 137

• Fits Bolt Sizes (in): 3/8

• Fits Bolt Sizes (mm): M10

• Inside Diameter (in): 3.50

• Inside Diameter (mm): 89

• Length (in): 6.45

• Length (mm): 163

• Material: Steel,Structural Steel,Carbon Steel,Alloy Zinc,Al

• Material Thickness (in): 0.15

• Material Thickness (mm): 4

• Width (in): 1.02

• Width (mm): 26
