108-3322: КОРПУС В СБОРЕ

Description:

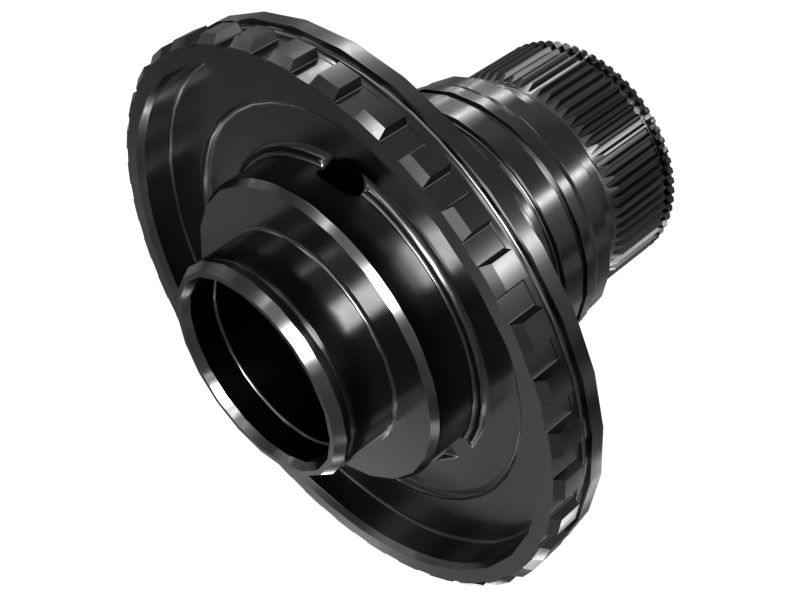

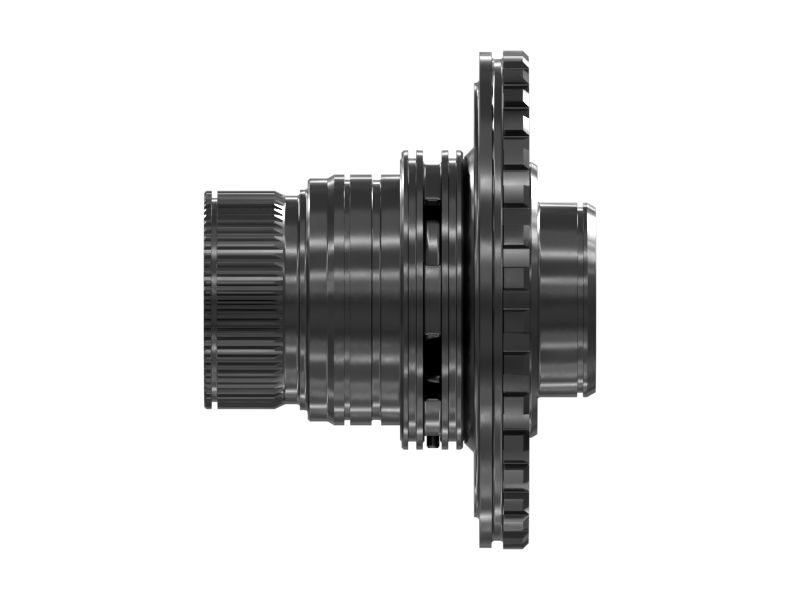

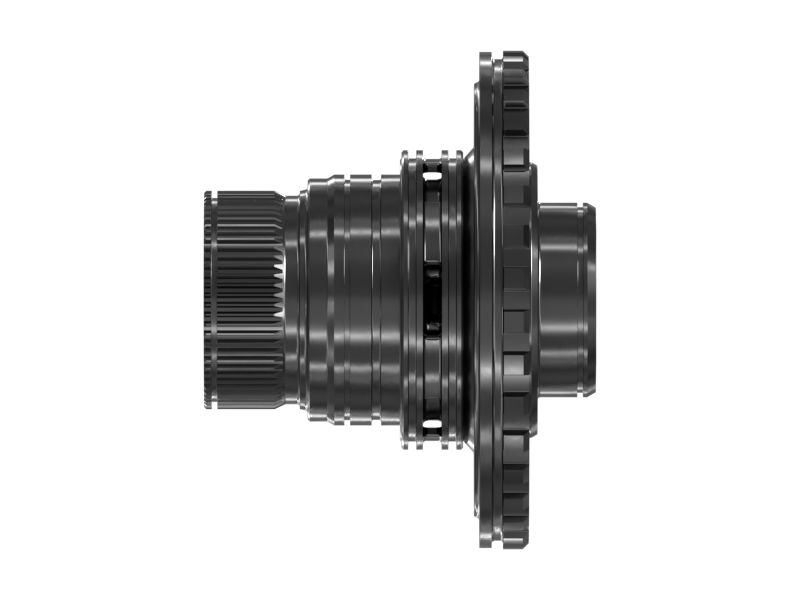

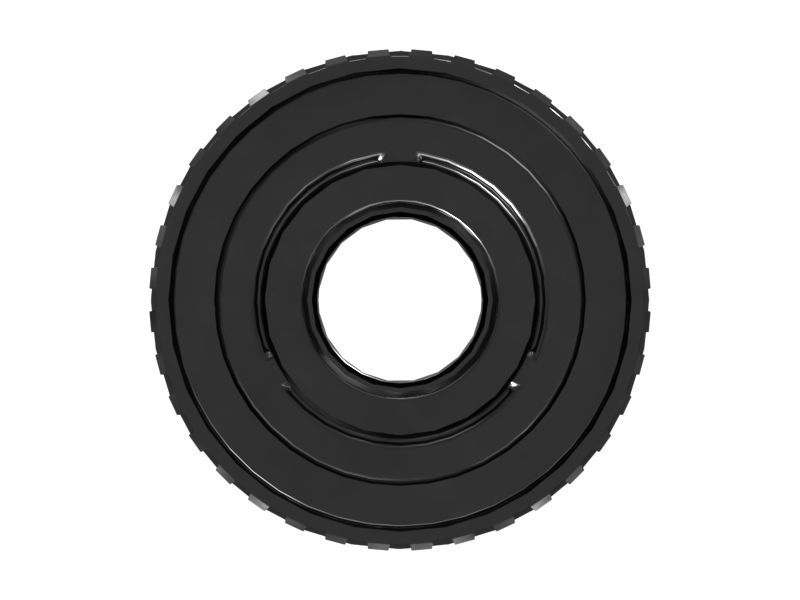

Part # 108-3322 provides a # 5 clutch housing for the planetary transmission.

Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine. Cat housing assemblies provide a durable housing for clutch components in the drive train system of Cat machines.

Attributes:
• # 5 Clutch housing with ring carrier and spring pin
• Cast iron housing
• External Spline A Number of Teeth: 36
• External Spline B Number of Teeth: 89
• Inside Diameter: 83.11 mm (3.27 in)
• Width: 198.25 mm (7.80 in)

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material: Cast Iron

• Inside Diameter (mm): 83.11

• Number of Teeth: 36; 89

• Width (mm): 198.25

• Inside Diameter (in): 3.27

• Width (in): 7.80
