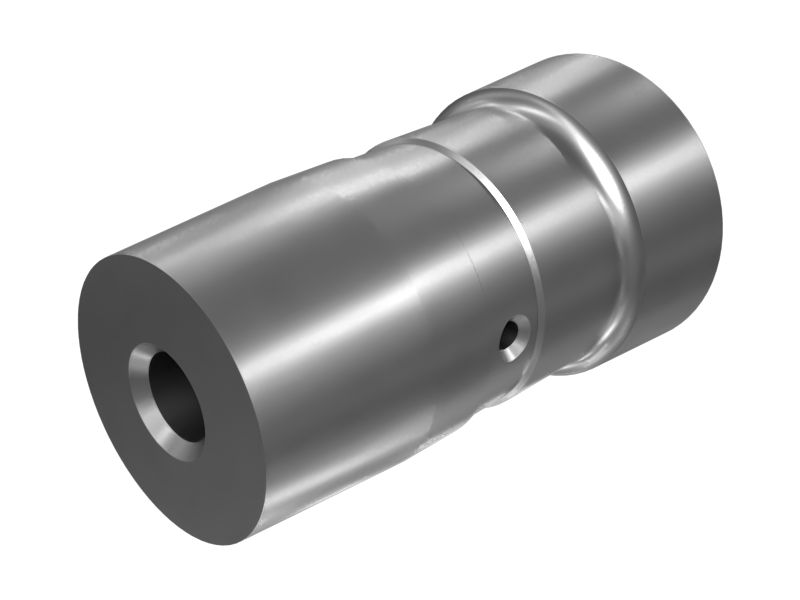

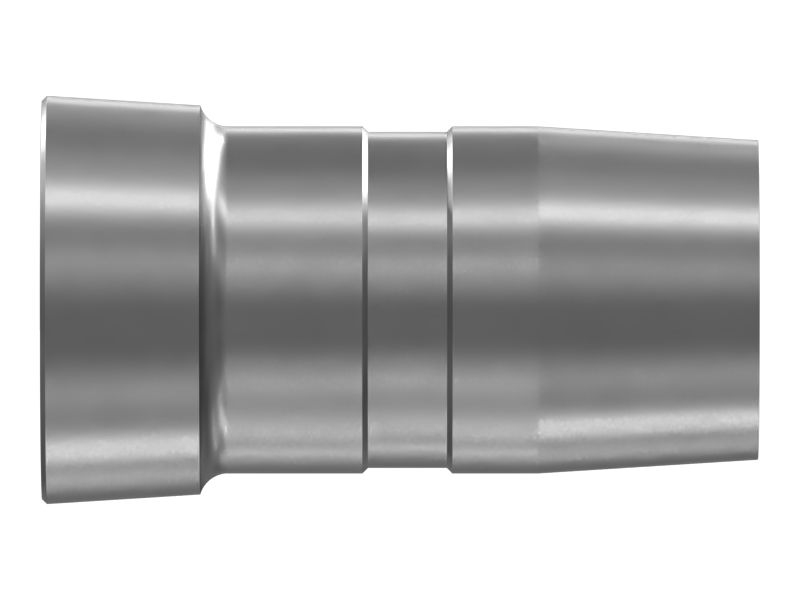

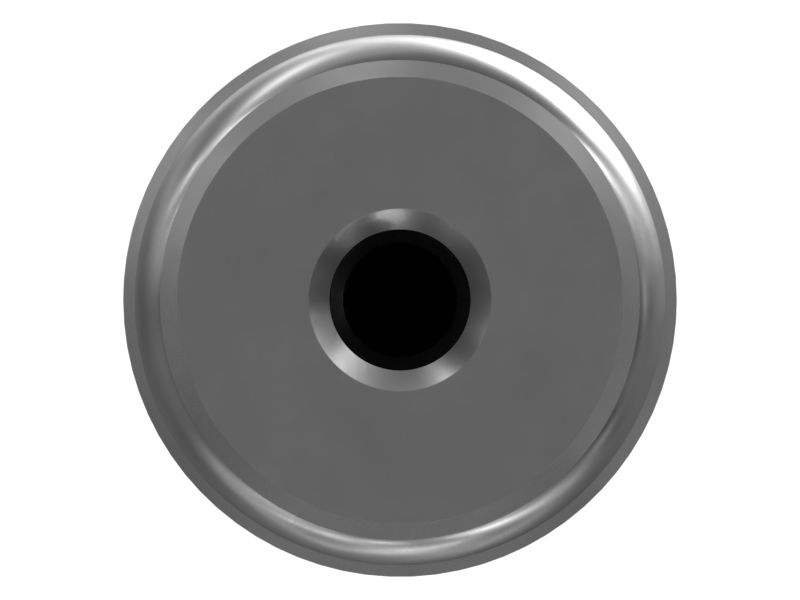

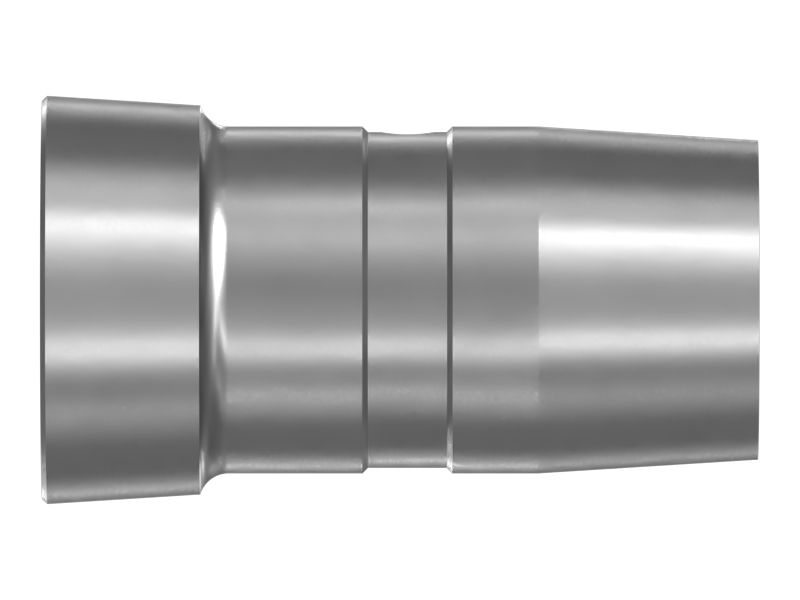

105-4079: Палец сцепного устройства, диаметр 70,24 мм

Description:
Replacement hitch pin for the oscillating hitch group that provides a connection between the engine end frame and non-engine end frame which permits oscillation and articulation on articulated machines.

Attributes:
• Material: Alloy steel
• Hardened steel pin
• Pin Diameter: 70.24 mm (2.765 in)
• Head Diameter: 82.8 mm (3.2598 in)
• Pin Length: 145 mm (5.7 in)
• Thread Size: 3/4-10
• Grease Passage: Yes
• Mounts with 3/4 inch hardware

Application:
Used for hitch assembly on articulated trucks. Consult your owner's manual or contact your local Cat Dealer for more information.

• Material Description: Alloy steel

• Pin Diameter (mm): 70.24

• Taper: 1

• Pin Diameter (in): 2.765

• Head Diameter (in): 3.2598

• Head Diameter (mm): 82.8

• Length (in): 5.7

• Length (mm): 145

• Material: Low Alloy Steel,Carbon Steel
